| PARAMETERS | DESCRIPTION |
| Operating System | Linux |
| Frontend | DVB-T&T2 tuner and demodulator |
| RAM | 256MBytes DDR3 |
| FLASH ROM | 128MBytes Nand flash |
| Video decoding | H.264 AVC, H.265 HEVC with resolution up to 1080p 60fps |
| Audio decoding | AAC, HE-AAC, Dolby Digital, Dolby Digital Plus |
| HDMI | HDMI1.4a protected by HDCP1.4 |
| Digital Audio | Passthough via coaxial SPDIF |
| Conditional Access | Irdeto IFCP MSR3.x / Verimatrix Advanced / Nagra |
| USB Port | USB 2.0 Type A |
| Remote Control | IR with NEC control |
| Power Adaptor | 12V 1A DC |

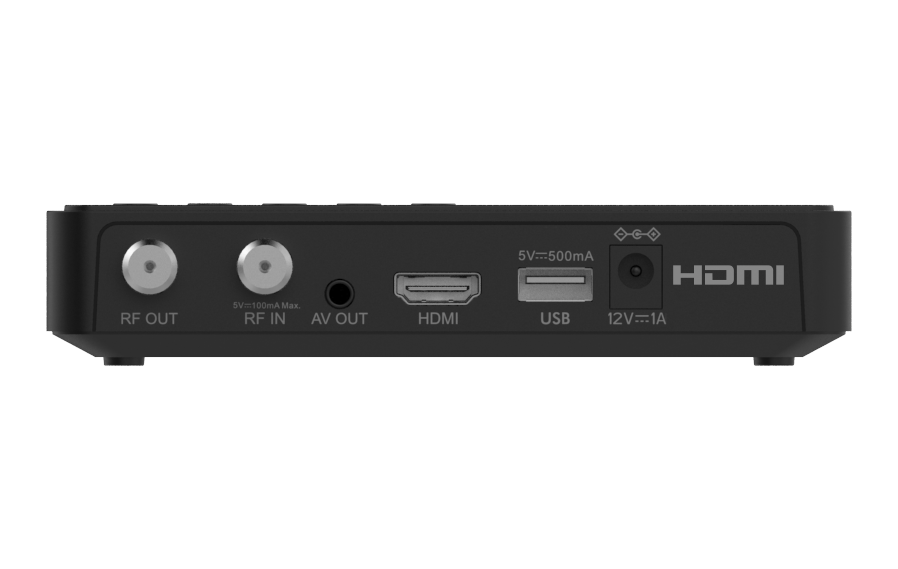

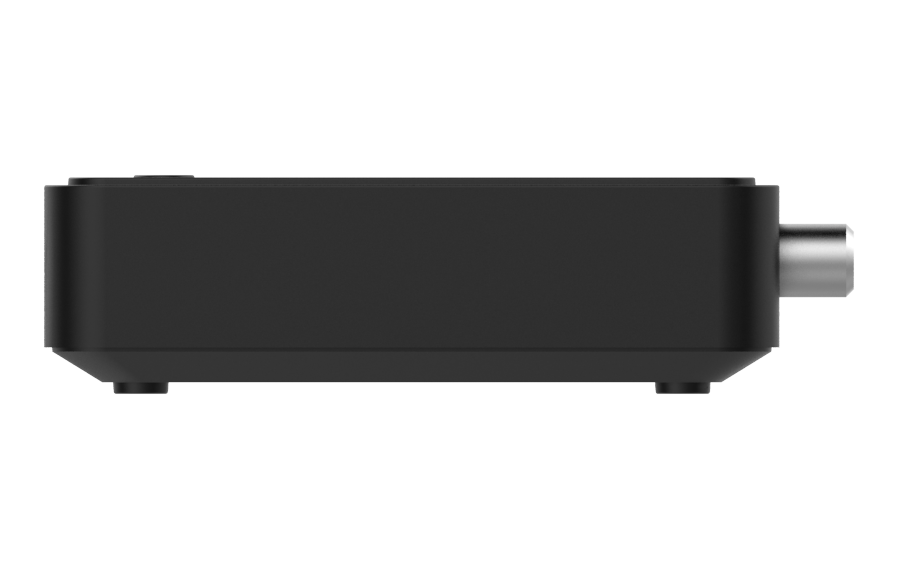

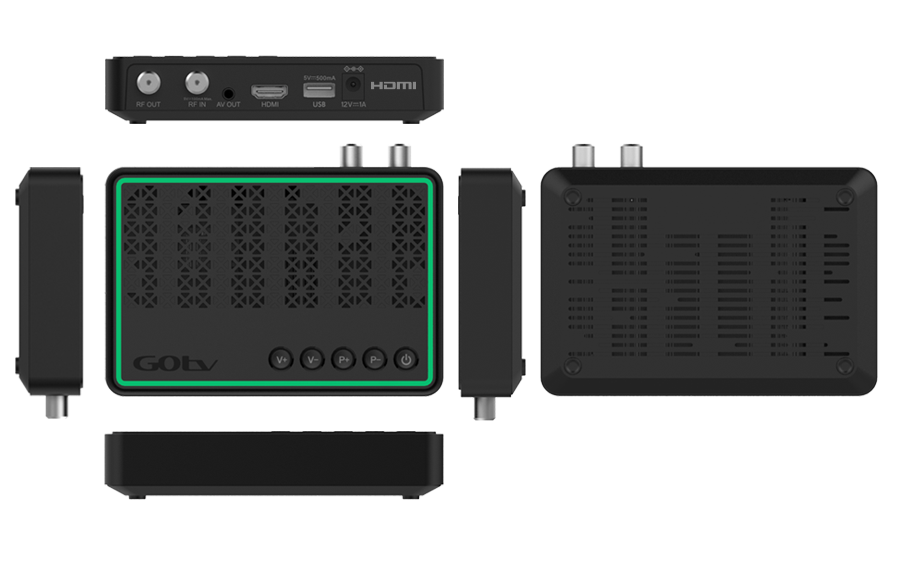

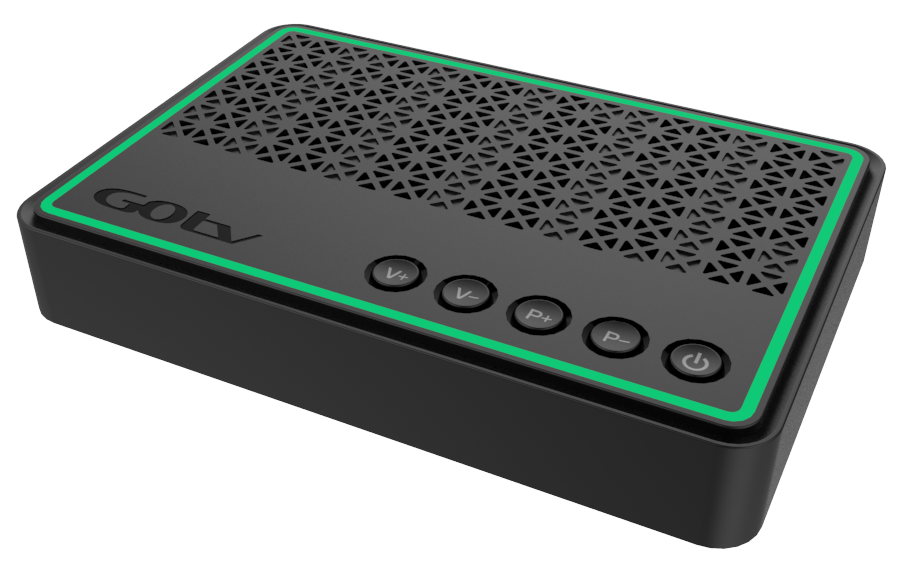

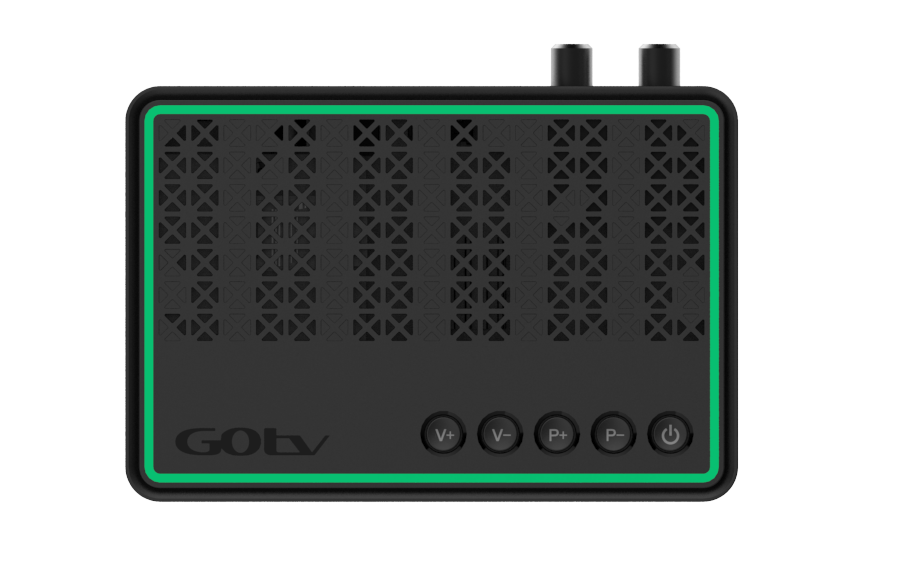

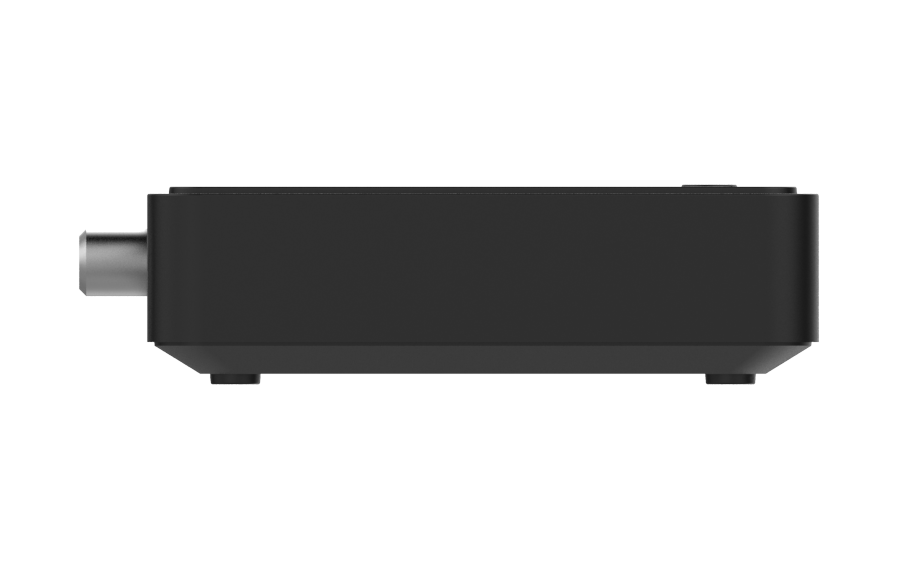

HD HEVC Terrestrial Zapper STB
Model: HT10A
Customizable Native Easy-to-use User Interface
7 Days EPG with Parental Control
Dolby Digital / Dolby Digital Plus certified
PVR & Timeshift through USB2.0
CAS Advanced Security implemented
Irdeto CA certified
SSU Over The Air firmware upgrade
7 Days EPG with Parental Control
Dolby Digital / Dolby Digital Plus certified
PVR & Timeshift through USB2.0
CAS Advanced Security implemented
Irdeto CA certified
SSU Over The Air firmware upgrade
The Skyworth HT10A HEVC HD Set Top Box (STB) is a cost effective product which offers subscribers the latest enhancements in terrestrial television viewing. It well supports operators to evolve their broadcasing network with much improvement of bandwidth efficiency with same even better esperience of picture clarity than legacy HD boxes. With the support of Dolby audio technologies, it provides user the wonderful movie theater experience of surround sound.
Skyworth also provides deep customization on the easy-to-user UI/UX solution, which includes a variety of applications such as 7 days EPG, genres navigators and other application services.
Skyworth also provides deep customization on the easy-to-user UI/UX solution, which includes a variety of applications such as 7 days EPG, genres navigators and other application services.
SPECIFICATION
